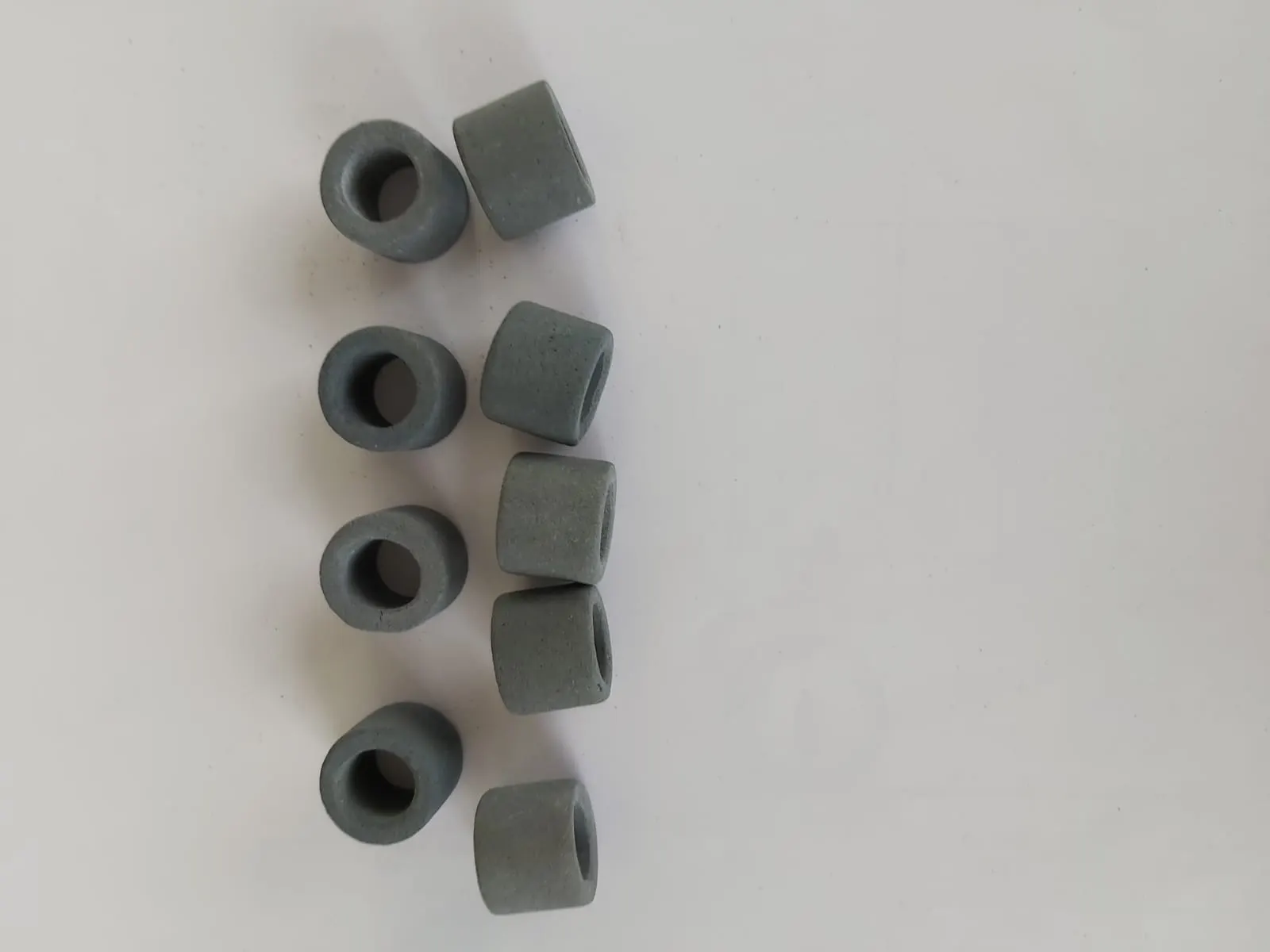

Silicon Carbide Tube
SiC tubes and sleeves that conduct heat fast and resist abrasion and thermal shock.
Service temperature
1400–1650 °C
Related sectors
About this product
A silicon carbide tube is chosen when the medium inside must be heated or outside heat must be transferred in; metal tubes oxidise at these temperatures while SiC holds. It serves as a thermocouple sleeve, a radiant heating tube and in molten metal immersion duties. It can be produced in various bores and wall thicknesses, including closed at one end.
Material
Silicon carbide has the highest thermal conductivity among refractories. It evens out temperature distribution inside the kiln and carries heavy loads even in thin plates, cutting the dead weight of the setting and raising kiln efficiency. It also resists abrasion, oxidation and attack from molten metals.
Applications
- Radiant heating tubes
- Thermocouple protection sleeves
- Molten metal immersion parts
Technical data
- Service temperature
- 1400 – 1650 °C
- Thermal conductivity
- 14 – 20 W/mK
- Density
- 2.6 – 3.0 g/cm³
Values are typical ranges for the material family; a batch-specific analysis certificate can be requested.
Ask for a price
Send the size, quantity and delivery point and we will confirm price and lead time the same day.
