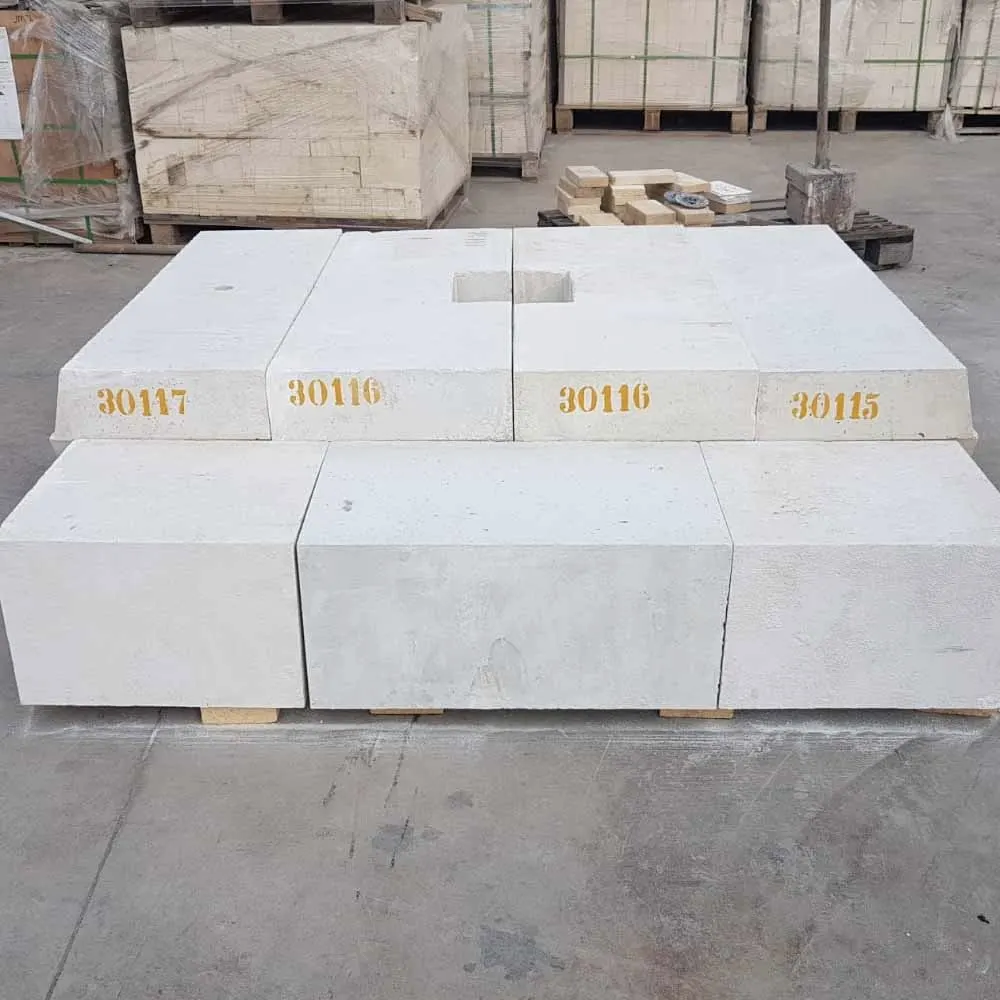

Forehearth Channel Covers
Cover blocks that hold the temperature profile inside the channel, with burner and thermocouple ports.
Service temperature
1500–1650 °C
Related sectors
About this product
Covers set the heat budget of the channel: if too much heat escapes the glass cools and forming suffers at the machine; if too little escapes the target viscosity is never reached. Cover blocks are calculated at the thickness that holds this balance, together with their insulation. Burner, thermocouple and peep-hole openings are pre-cut in the cover to shorten installation.
Material
Zircon mullite is a mullite matrix reinforced with zircon (ZrSiO₄). In contact with molten glass it shows low wettability and sound corrosion resistance while keeping the melt clean. It is the standard choice for forehearth channel blocks, spouts, feeder expendables, vitrified supports and gob delivery blocks.
Applications
- Channel top cover courses
- Burner and thermocouple ports
- Distributor top covering
Technical data
- ZrO₂ content
- 18% – 32%
- Service temperature
- 1500 – 1650 °C
- Density
- 2.8 – 3.3 g/cm³
Values are typical ranges for the material family; a batch-specific analysis certificate can be requested.
Ask for a price
Send the size, quantity and delivery point and we will confirm price and lead time the same day.
