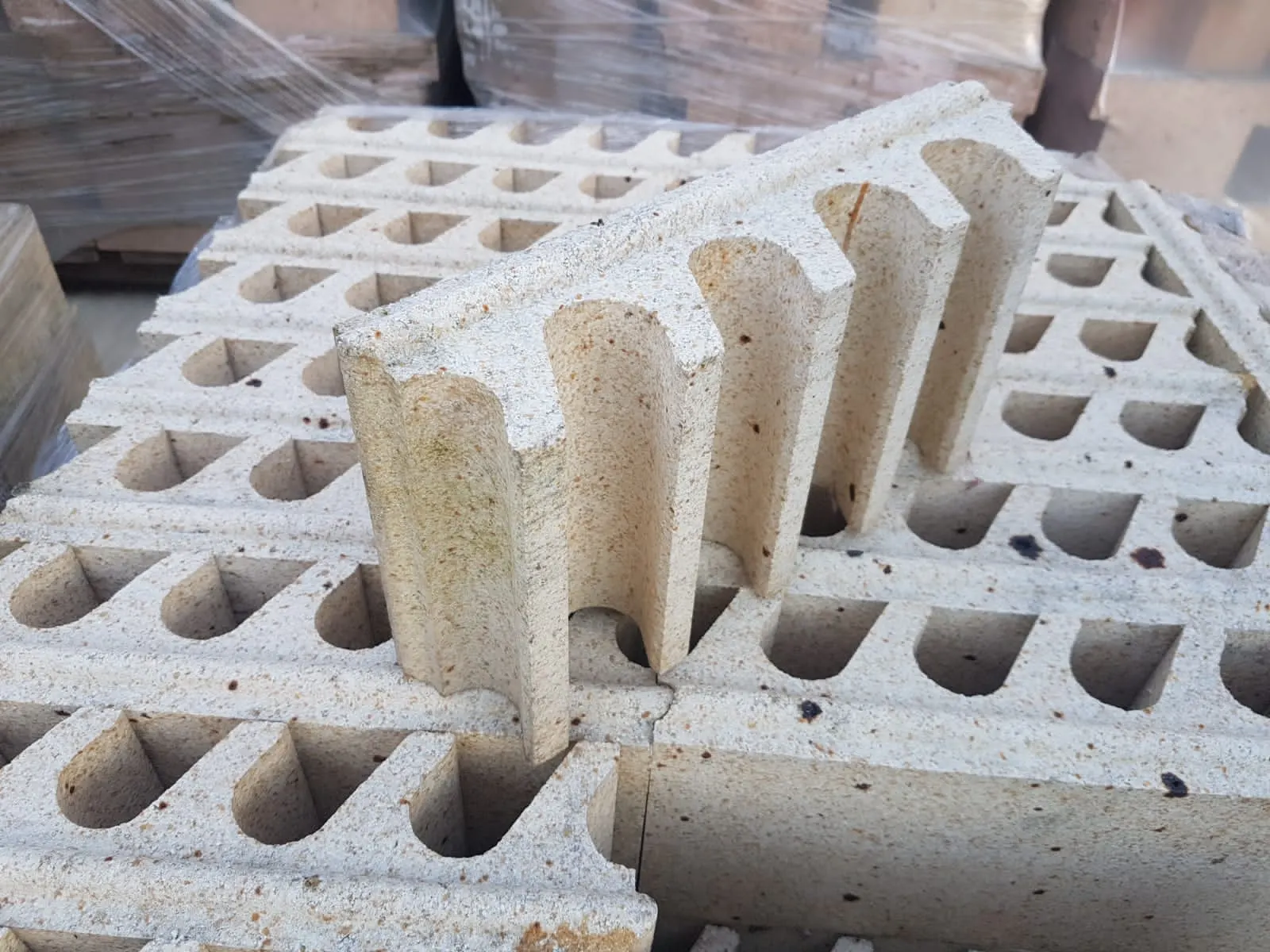

Sillimanite / Andalusite Special Shaped and Channelled Refractories
Channelled bodies that carry air or gas through them, plus project-specific shapes.
Service temperature
1450–1600 °C
Related sectors
About this product
Channelled refractories act as lining and flow element at once: the cooling air or process gas passing through them also regulates the temperature of the body. Because the smoothness of the channel section directly sets the pressure drop, machining accuracy matters. Sillimanite and andalusite based bodies suit that machining and hold their dimensions well.
Material
Andalusite and sillimanite are natural aluminium silicates that form mullite in situ when fired. That conversion gives the brick volume stability at temperature together with good thermal shock resistance. In ring bricks, channel blocks and medium-to-high temperature zones they offer a more economical answer than the corundum class.
Applications
- Blocks with cooling air channels
- Burner and gas distribution bodies
- Project-specific shaped pieces
Technical data
- Al₂O₃ content
- 55% – 70%
- Service temperature
- 1450 – 1600 °C
- Density
- 2.3 – 2.7 g/cm³
Values are typical ranges for the material family; a batch-specific analysis certificate can be requested.
Ask for a price
Send the size, quantity and delivery point and we will confirm price and lead time the same day.
