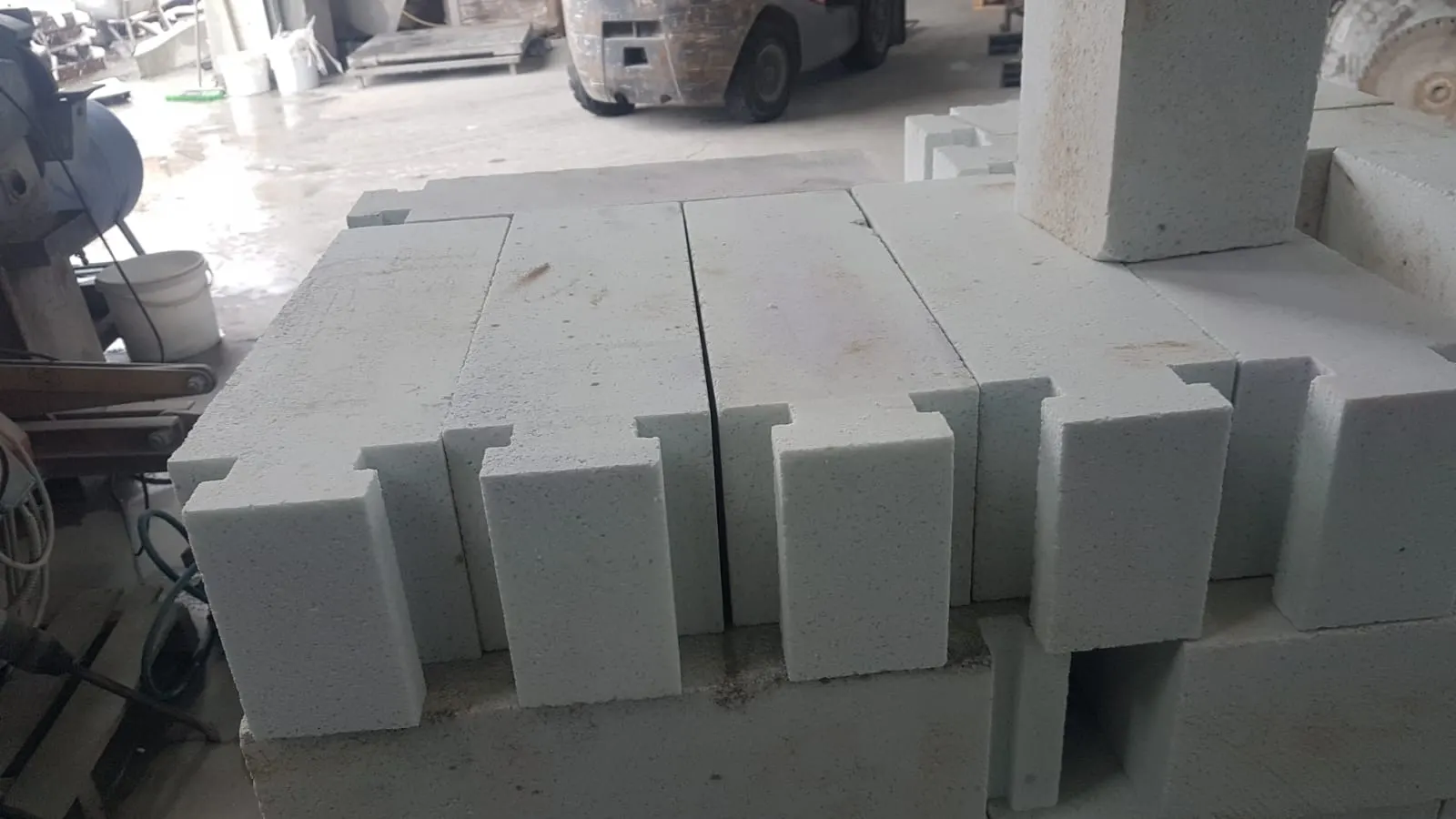

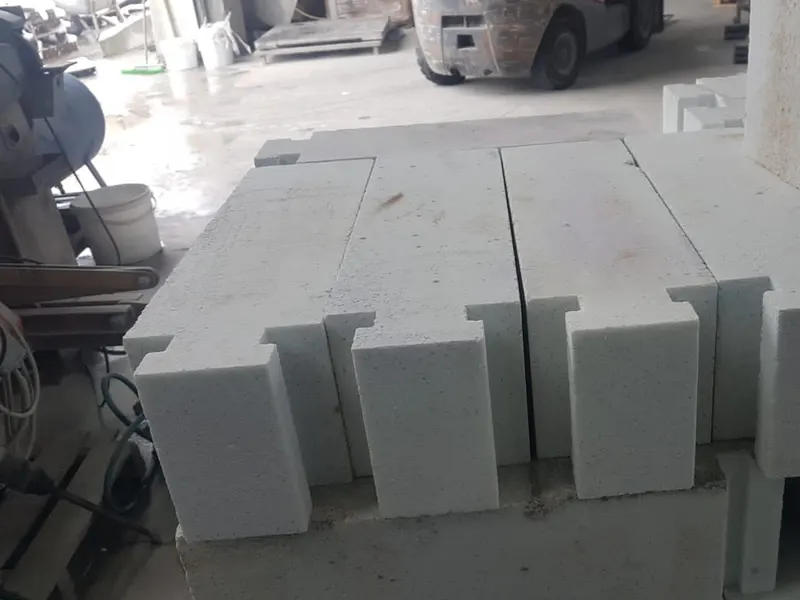

Fused Silica Suspension Brick
A suspension brick that does not crack under sudden regime changes thanks to near-zero expansion.
Service temperature
1300–1500 °C
Related sectors
About this product
The weak point of a suspended roof is that bricks move relative to each other and to the hanger steel; a material that expands jams and breaks there. Fused silica solves that at the source: it barely grows on heating, so the suspension stays as it was on day one. It is particularly advantageous on channel covers and in zones stopped and restarted often.
Material
Fused silica is produced by melting high-purity quartz and letting it solidify in an amorphous state. Its coefficient of thermal expansion is close to zero, so it does not crack under rapid heating or cooling — which makes it ideal for suspended roof blocks, crown components and any part exposed to frequent thermal cycling. Its non-wetting behaviour against molten aluminium and zinc has also made it common in foundries.
Applications
- Suspended roof and cover systems
- Frequently cycled furnace zones
- Channel and feeder superstructures
Technical data
- SiO₂ content
- > 99%
- Service temperature
- 1300 – 1500 °C
- Thermal expansion
- ≈ 0.5 × 10⁻⁶ /K
Values are typical ranges for the material family; a batch-specific analysis certificate can be requested.
Ask for a price
Send the size, quantity and delivery point and we will confirm price and lead time the same day.
