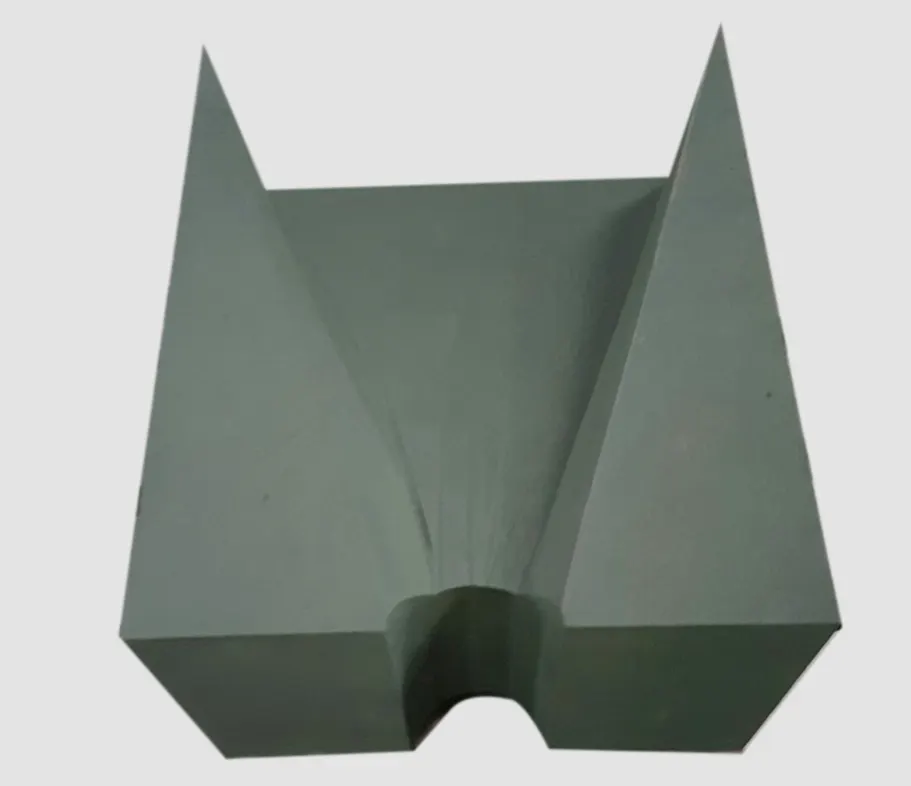

Throat Block
AZS / ZAC Fused Cast

Throat Block

The AZS block forming the passage between melter and working end — the fastest wearing part of the tank.

Service temperature

1650–1700 °C

1700 °C
WhatsApp+90 533 597 55 55

Related sectors

About this product

The throat is the narrow section through which all the glass in the furnace must pass. Flow velocity is high, temperature is high, and wear accordingly proceeds faster here than anywhere else — in most furnaces it is the one item planned for replacement mid-campaign. It is produced from high-ZrO₂ grade blocks and ground so the geometry creates no turbulence in the flow.

Material

AZS (alumina–zirconia–silica) is a fused cast refractory produced by melting the raw mix in an electric arc furnace and casting it into moulds. Its zirconia content gives outstanding corrosion resistance against molten glass, which is why it is the default choice for the tank bottom, sidewalls and throat — everywhere the glass makes direct contact. Kent Ateş Tuğla supplies the 33% and 36% ZrO₂ grades both as standard blocks and as project-specific cuts and shapes.

Applications

  • Melter to working end passage
  • Glass wool and frit plants
  • Planned mid-campaign replacement

Technical data

ZrO₂ content
33% – 36%
Service temperature
1650 – 1700 °C
Density
3.7 – 4.0 g/cm³
Apparent porosity
< 1%

Values are typical ranges for the material family; a batch-specific analysis certificate can be requested.

Ask for a price

Send the size, quantity and delivery point and we will confirm price and lead time the same day.
